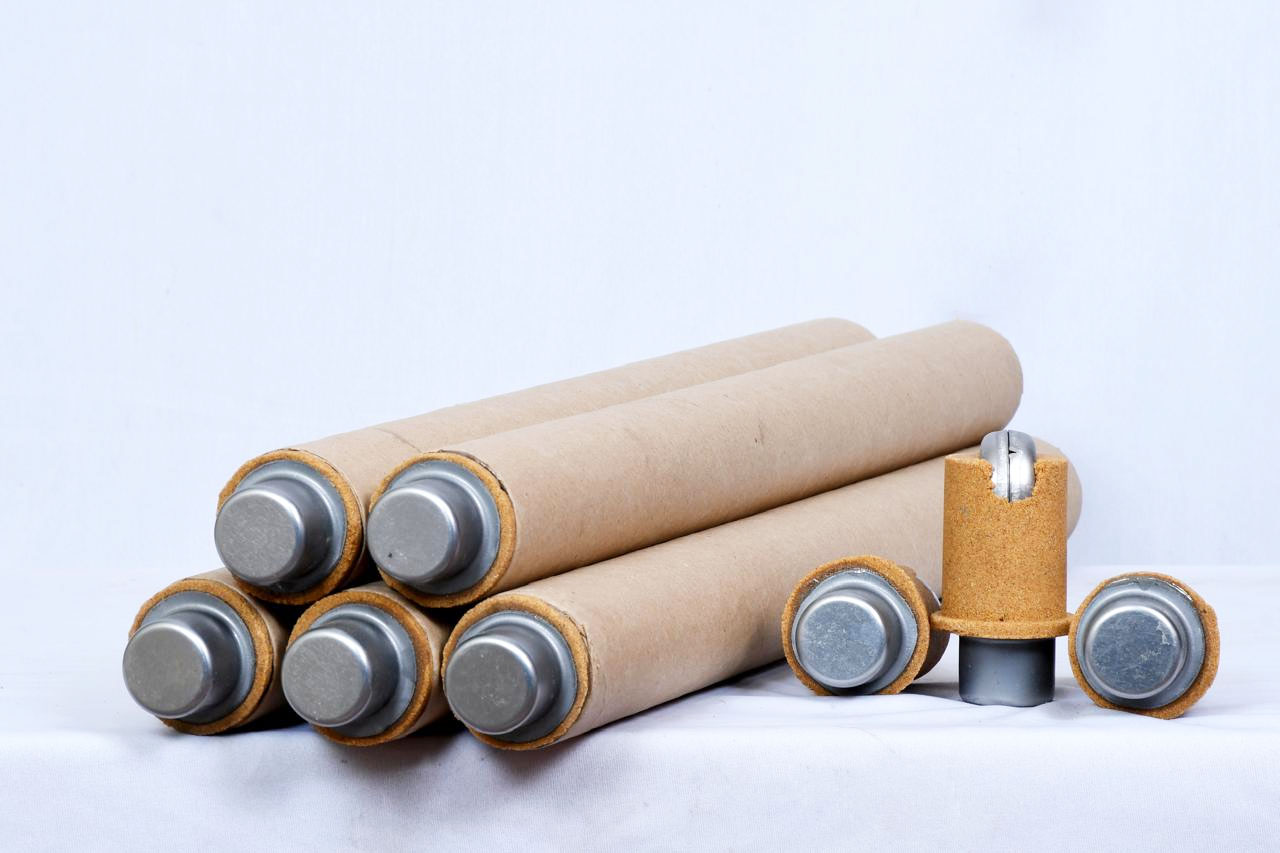

Immersion Samplers With Steel Caps
- Samples can be obtained within 5 Seconds
- Sample Shapes: Round and Oval
- Paper Tube Dimension: ID 40 mm OD 50 mm
- Length: 600 mm / 900 mm up to 1500 mm as per customer requirement
- De-oxidants: Aluminum/Zirconium/Plain
What is an Immersion Sampler?
An immersion sampler is a means to understand the chemical composition of molten metal. During the casting or metal production process, it is vital to constantly understand the chemical composition to produce the metal to the desired specification. Incorrect chemical composition can lead to scrapping the metal, hence immersion samplers are very actively used.
Why is Immersion Sampling important for steel and foundry companies?
To produce castings and steel as per the desired specification. The steel and casting production are intrinsically dependent on the chemical composition of the metal.
Key aspects like Hardness, Toughness, Tensile Strength, Yield Strength, Elongation, Fatigue Strength, Corrosion, Plasticity, Malleability and Creep – They depend on the chemical composition of the metal.
Immersion sampling is an efficient and effective way to understand the chemical composition of the metal in its molten state. Since the sampling is immersive and not surface level, it provides the most cost effective and reliable sampling process.
Who uses an Immersion Sampler?
Foundries and Steel production companies use Immersion Samplers. Particularly the key users are:
- Foundry Operators
- Foundry Man
- Technical Manager
- Operations Manager
- Production Manager
- Quality Assurance Managers
Used For
- Collection of molten metal samples from furnaces and ladles
- Dip-Type Application
- Fits with any standard size lance assembly
- Single-Type Use
| PARAMETER | OVAL | ROUND |
|---|---|---|
| Length | 32 mm | 32 mm |
| Width | 32 mm | 32 mm |
| Thickness | 12 mm / 14 mm | 12 mm / 14 mm |
| Tail | 6 mm | 6 mm |
