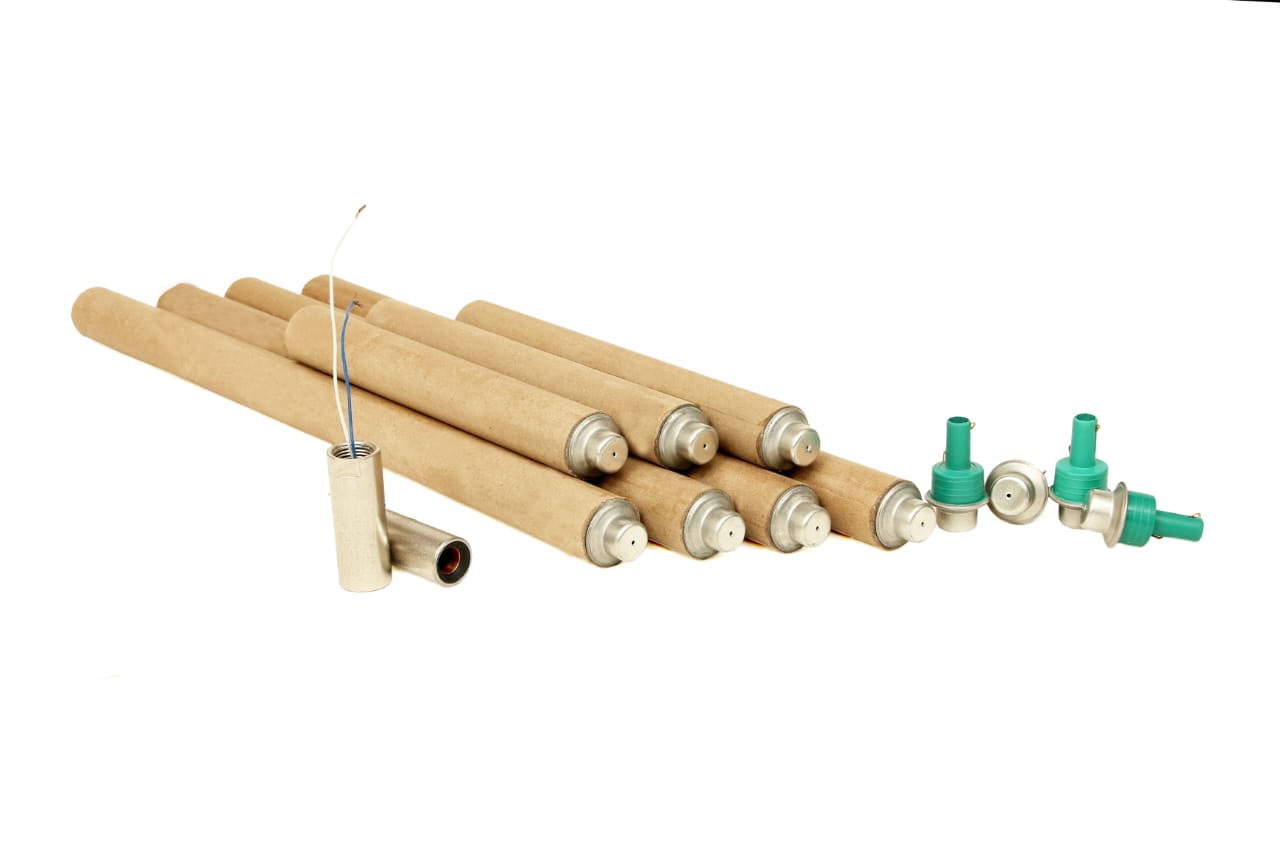

Mark III Tips
- Thermocouple Tip Mark III 10% (Type S) / 13% (Type R) / 6/30% (Type B) with Paper Tube Length of 300 to 1500mm as required according to Furnace Capacity.
- Mark III is used especially for Steel plants
- Connector type is Female
- Supporter type is Plastic
- Accuracy: +5° C.
- Usage: Single time used
- ID/OD: 28MM/42MM
Mark IV Tips
- Thermocouple Tip Mini 10% (Type S) / 13% (Type R) / 6/30% (Type B) with Paper Tube length of 300 to 1500mm as required according to furnace capacity.
- Minitip is used especially for steel plants
- Connector type is male
- Supporter type is Plastic
- Accuracy: +5° C.
- Usage: Single time used
- ID/OD: 18MM/32MM

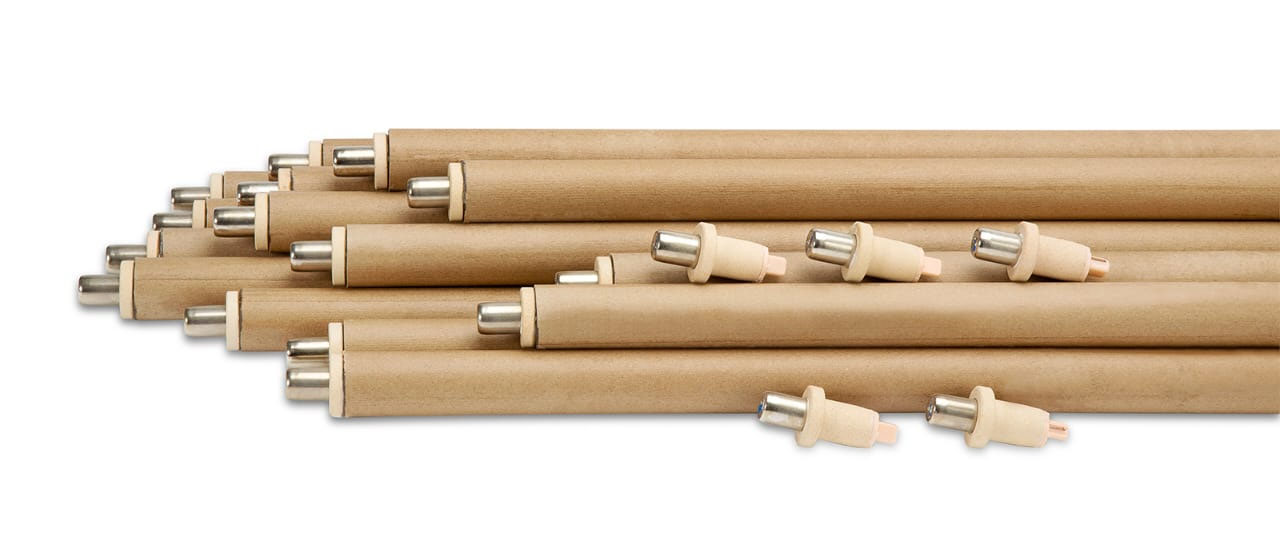

Mark VII Tips
- Thermocouple Tip Mark VII 10% (Type S) / 13% (Type R) / 6/30% (Type B) with Paper Tube Length of 300 to 1500mm as required according to furnace capacity.
- Mark VII is used especially for Steel plants
- Connector type is Male Female
- Supporter type is plastic / ceramic as required
- Accuracy: ±5° C.
- Usage: Single time used
- UID/OD: 18MM/32MM
- Metal Cap: M.S / AL / CU
